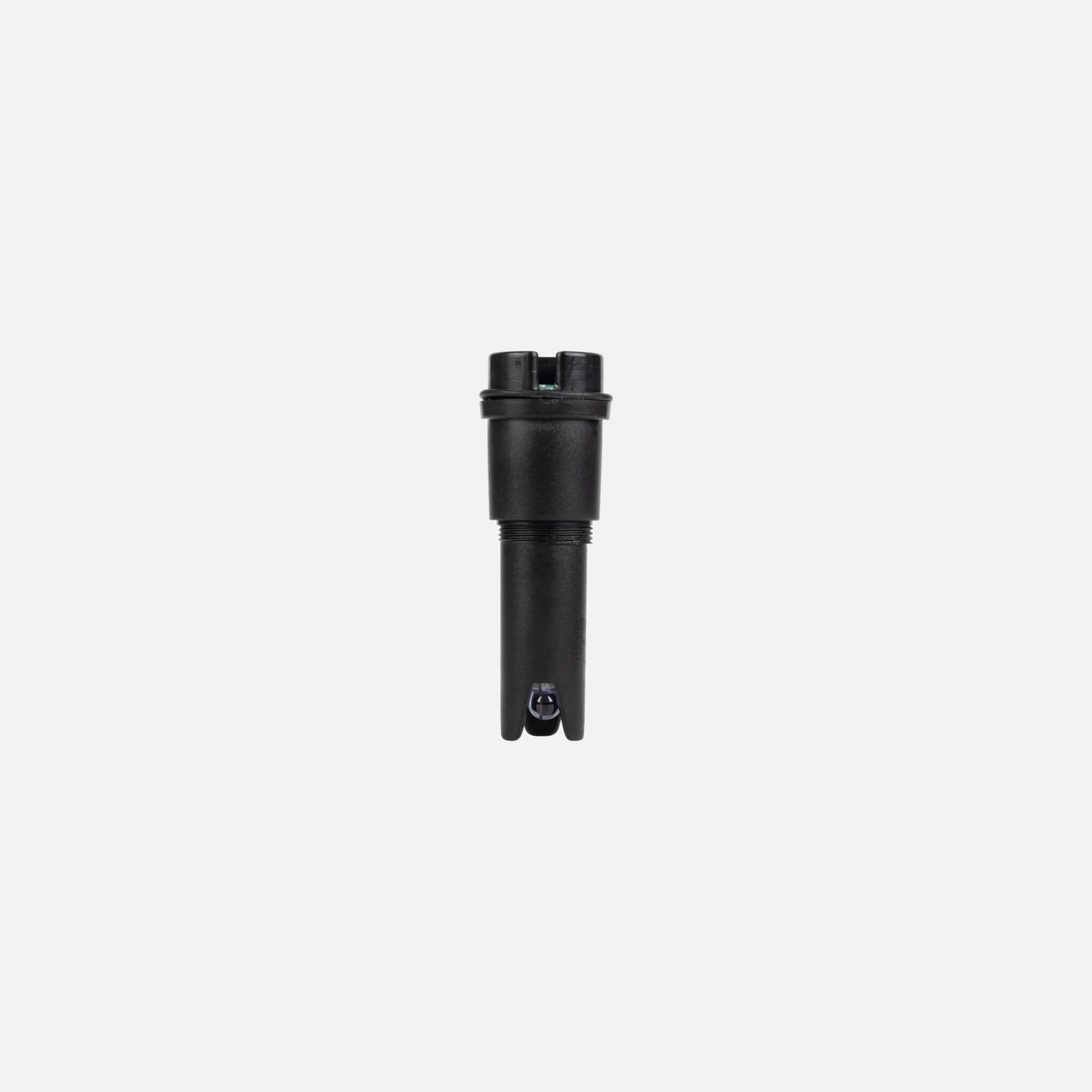

AquaMaster pH, EC, PPM, TDS electrode for P160 Pro

This replacement pH , EC , PPM , TDS , and temperature electrode is specifically designed for the P160 Pro Combo Pen . When securely connected to the meter, it maintains IP67 waterproof rating , ensuring durability and reliable performance in a variety of environments .

Replacing the electrode:

1. Loosen the sealing tab:
   Turn the sealing tab at the bottom of the gauge to loosen it.

2. Remove old electrode:
   Carefully pull out the defective or old electrode to avoid damaging the terminals .

3. Install new electrode:
   Align the inlet of the new electrode correctly and ensure that the connectors are properly connected to prevent damage to the electrode or the meter.

4. Check rubber seal:
   Check that the rubber seal is correctly positioned to ensure a secure and watertight connection .

5. Tighten the sealing tab:
   Tighten the sealing tab to securely hold the electrode in place.

6. Calibrate the measuring device:
   Perform calibration according to the instructions in the user manual to obtain accurate readings .

7. Ready to use:
   After calibration, the measuring device is ready for use .

With this replacement electrode, your P160 Pro Combo Pen remains a reliable meter that provides precise pH, EC, PPM, TDS and temperature measurements in a variety of environments .
