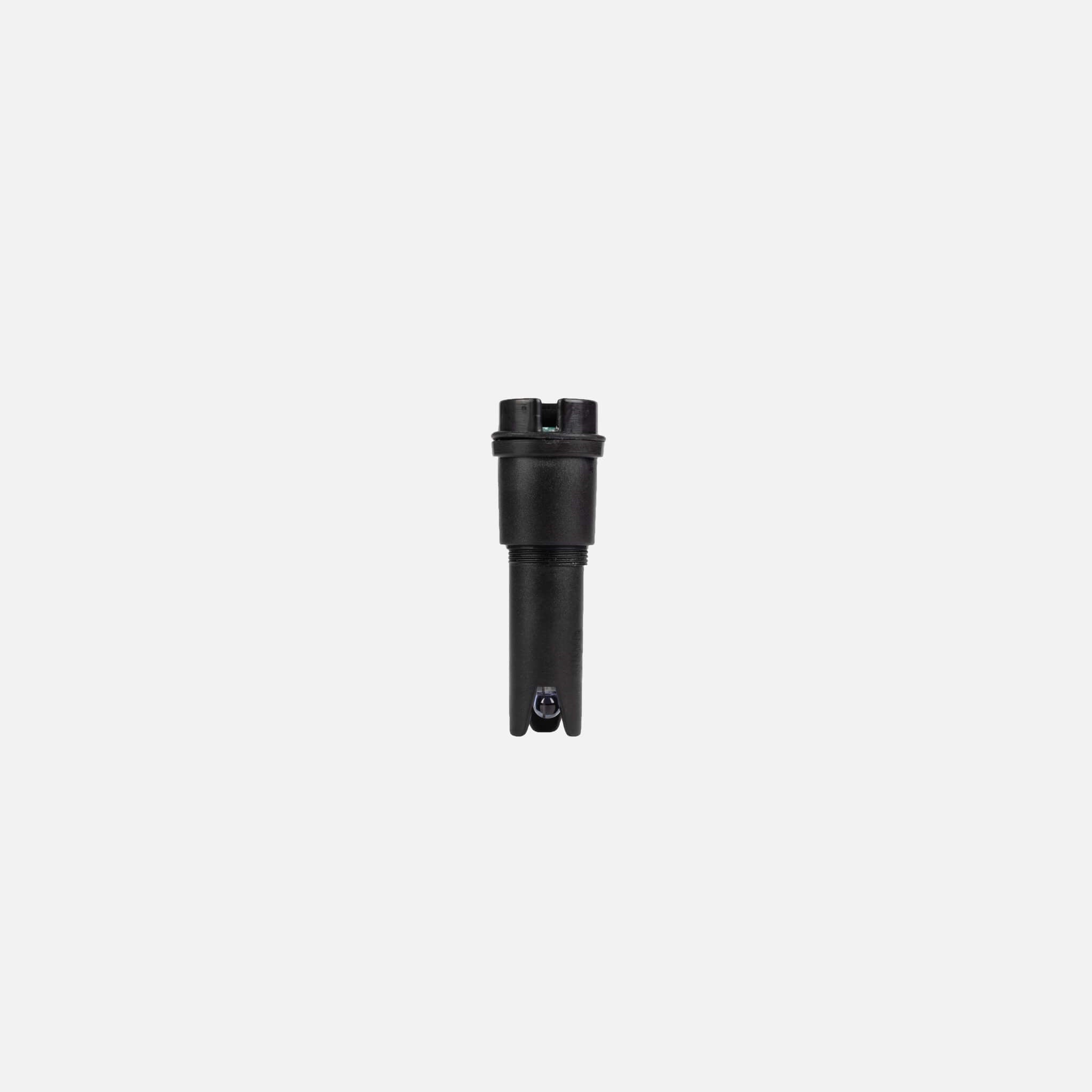

AquaMaster pH, EC electrode for P110 Pro

This replacement pH , EC , and temperature electrode is specifically designed for the P110 Pro Combo Pen . When securely connected to the meter, the electrode maintains IP67 waterproof rating , ensuring reliable and long-lasting performance in a variety of environments.

Replacing the electrode:

1. Loosen the sealing tab:
   Turn the sealing tab at the bottom of the gauge to loosen it.

2. Remove old electrode:
   Carefully pull out the defective or old electrode to avoid damaging the terminals .

3. Install new electrode:
   Align the recess of the new electrode correctly and ensure that the terminals are properly positioned to prevent damage to the meter or the electrode.

4. Check rubber seal:
   Check that the rubber seal is correctly positioned to ensure a secure and watertight connection .

5. Tighten the sealing tab:
   Tighten the sealing tab to securely hold the electrode in place.

6. Perform calibration:
   Follow the calibration instructions in the manual to prepare the device for accurate measurements .

7. Ready to use:
   After calibration, the measuring device is fully operational .

With this replacement electrode, your P110 Pro Combo Pen will always remain reliable and deliver precise measurements for pH , EC and temperature .
